Lecture 14 - Network Security II

5 min read

  • DNS
  • Netowrk perimeter defenses
  • DOS

Domain Name System

  • DNS names like google.com need to get mapped to IP addr
  • i already know this from 224

Bailiwick Checking

  • response from server is cached if it is within the same domain as the query

DNS Cache Poisoning

  • user wants a.bank.com
  • user cannot find the IP, so it goes to ns.bank.com to find the name server
  • attacker has already hijacked local DNS resolver, so it returns a bad website
  • user downloads malicious code from the bad website

Defenses:

  • increase query ID size
    • randomize src port and make sure it matches additional 11 bits
    • attacks take hours instead of minutes
    • 0x20 encoding. randomly vary capitalization (DNS is case sensitive)
    • check that you get the same capitalization back
  • detect poisoning
    • and refuse to cache targets
    • ignore responses not directly necessary query
    • detect failed query matching

Network Perimeter Defense

  • firewalls and application proxies
  • Network Address Translation
  • Netowrk Intrust Detection System

Firewalls

  • isolate/protect network from other parts
    • protect self from network or another part
    • protect Internet from self
  • firewalls run at
    • end hosts (more application/user specific information)
    • network firewalls (intercept/evaluate communications from many hosts)
  • filter on:
    • packet filters (filtering header content)
    • proxy-based (operates at the level of the application)

Access Control Policies

  • firewalls tries to enforce and access control policy
  • distinguish between inbound/outbound connections
    • Inbound: attempts by external users to connect to internal
    • Outbound: attempts by internal users to connect to external
  • conceptually simply ACP
    • permit internal to connect internal freely
    • restrict external users
  • Default Allow: permit all services and only specify the ones that you want to exclude
  • Dedault Deny: deny all services and only specify the ones you want to allow
    • safer (reduces chances of false negatives, and hits all true positives)
    • flaws get noticed more quickly (cannot access canvas.ucsd.edu → big issue)

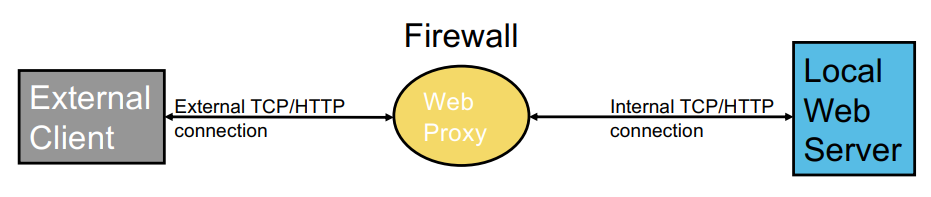

Proxy Based Firewalls

  • proxy acts as both client and a server
  • more semantics available

Pros

  • reduced attack surface, filter out a lot of noise
  • reduced liability

Cons

  • cost in hardware, administration
  • bottleneck + single point of failure
  • false sense of security (limited language)

Network Content Analysis

  • many network devices want to look at traffic content for security. Does this with:
    • Network Intrusion Detection/Prevention Systems
    • Spam Filters
    • Data Leakage
    • Traffic Differentiation
  • would want to do this since it is cost-effective and centralized

Challenges

  • each packet is expensive to look into
  • sessions may be encrypted
  • reassembling packets into streams can be expensive (since malware may be split across many different packets)
  • imperfect network vantage point

Network Evasion

  • NIDS is typically deployed at the network boundary (like a firewall)
  • assumes it sees the same traffic the host receives
  • In reality,
    • Fragmentation: attackers can split malicious payloads across packets in ways NIDS cannot fully reassemble
    • Obfuscation: encoding data or altering packet structure to bypass signature detection
    • Timing Gaps: sending packets at irregular intervals to disrupt detection

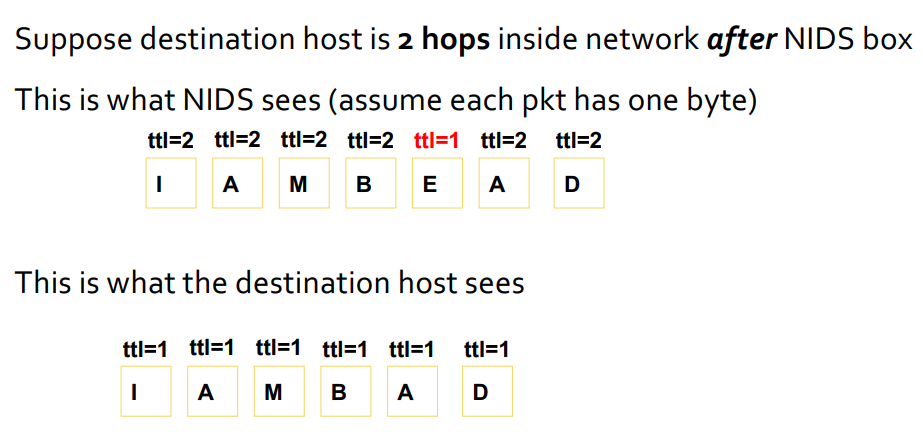

TTL Evasion

  • Imagine this setup:
  • Hops: is how many jumps left before the packet expires (jumping to computer counts as 1)
  • Malicious payload goes undetected

Sequence Evasion

				[A] [D]
[I] [A] [M] [B] [E]
 1   2   3   4   5   6

What does the destination see? IAMBED, IAMBAD, IAMBD, depends on the host.

Solution

  • NIDS can fix this by rewriting all packets to remove ambiguity
    • rewrite all TTL
    • does not allow overlapping packets (reject immediately)
  • tricky to get write + expensive

Denial-of-Service

  • attack against availability
    • Logic Vulnerability: explot bugs in network code to cause crash
    • Resource Consumption: overwhelm with too many requests (harder to fix)
      • SYN flood
      • too much time to evaluate messages
      • can cause no connections to be dropped and existing connections to time out
      • some routers are packet/sec limited (FIFO)
  • Distributed DOS (DDOS): many hosts attack a victim at once

Solutions

Source Address Validation

  • filter packets with clearly bad source addresses
  • Network Egress: filter outbound packets on a link whose source addresses are not reached using the link as the next hop (prevent spoofed packets from leaving)
    • requires cooperation from the router (requires good deeds for others)
  • Network Ingress: filter inbound packets whose source addresses are not in the routing table at all

SYN Cookies

  • allocation per TCP session is expensive
  • assume spoofers cannot complete TCP handshake → delay allocation of state until remote host commits threeway handshake
  • send back SYN/ACK packet without allocting state on server
  • uses a special SYN cookie
    • derived from source IP, dest IP, src PORT, dest PRT, timestamp
  • validates SYN cookie on act → establishes connection + allocate state
  • spoofed addresses cannot complete handshake as they cannot send back a valid ACK

Packet Filtering

  • if there is a common feature in the packets, drop them (blacklist)
  • instead, try to find a good feature if this is not possible (whitelist)
  • can rate-limit suspicious packets
  • EXPENSIVE

Buy More Resources

  • large servers can handle these attackers
  • attackers can get diverted to local CDN server
  • EXPENSIVE

Special Case: Reflection Attacks

  • spoof source address of victim (pretend to be the victim)
  • use the victim’s server to send requests to 1000s of DNS servers
  • Attacker stays anonymous
  • Responses may be extremely large, and so it can DOS the victim’s server
