Lecture 6 - Countermeasures and Mitigations

• asking developers to not insert vulnerabilities has not worked
  • people make mistakes
  • not all are discovered
• countermeasures as a next line of defense
  • reduce what the attacker can access
  • reduce how much damage the attacker can do (or steal)

What are we preventing?

• overwriting of the return address
• hijacking of the control flow
• all out of bounds memory access

Approaches

• Stack canaries/cookies (detect overwrites)
  • canary in mine, if dies, all miners need to leave ASAP
• Memory Protection (difficult to redirect control flow)
• Address Space Layout Randomization

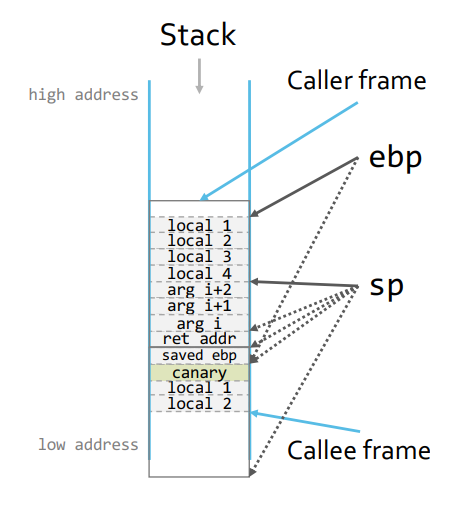

Stack Canaries

• stack based buffer overflows
• goal is to detect if the return address is overwritten
• place a special value between local variables and the saved frame pointer
• check value before popping saved frame pointer
• When returning, check canary against gold copy.
• jump to exception handler if different
• best canary:0x000A0D0FF
  • stores NUL, CR, LF, EOF
• Canary must be secret (if it is fixed, it is easy to know what to put there)
• do not protect against non-sequential overwrites

How to use them? and when?

• -fstack-protector
  • for functions with char buffers $\ge$ ssp-buffer-size
  • functions with variable sized alloc()
• -fstack-protector-strong
  • functions with local arrays of any size/type
  • functions that have references to local stack variables
• -fstack-protector-all
  • all functions’
• more protection $=$ increase cost for every function

Bypass

• skip over the canary
• attacker can overwrite the canary with the correct value
• terminator canaries are impossible to is overwrite
• canary value is selected at process creation, and has the same value
• can brute force
  • forked process has some memory layout and contents as parent, including canary values
  • lets us try a bunch of canaries and crashing the program
• attacker can overwrite local variables, security checks, function pointers, or data pointers

Pointer Subterfuge

• skips over the pointer
• add more here to understand it

Non-executable Stack

• Goal: prevent execution of shellcode on stack
• Modern processors can mark virtual memory pages with permission bits:
  • Read, Write, EXecute
  • RWX
• Mark all pages either writable or executable, but not both
• sometimes called W^X to show write XOR executable

Pros

• no changes to application software
• little to no performance impact (due to TLB lookup)

Cons

• requires hardware support
• does not work automatically with certain programming tricks

Assumptions

• prevent attackers from injecting code $⟹$ deny ability to execute malicious code
• all pages are either write-able or executable

DEP Bypass

• special handling needed for JIT code (JS), memory overlays, and self-modifying code
• extremely common
• transferring control flow to existing function can be coerced into doing something bad
• attacker can execute arbitrary code without even needing to inject it into the victim process

Prevention: Hide Shellcode’s Location

• Assumptions:
  • stack smashing exploits depend on being able to predict stack addresses
  • harder to guess the location of the shellcode on the stack
    • bypass would only work with info leak, guessing, and longer NOP sled.
• requires compiler, linker, and loader support
• increases code size, and performance overhead
• RNG dependency on canaries
• potential load time impact for relocation
• Bypass:
  • information leak/guessing
  • heap spraying

Heap Spraying

• what if we used overwhelming force to go to everywhere, and then use a long NOP sled and find where you need to be in the stack
• make a bunch small items of the bad code in the heap, then have them try to find the shellcode location

Summary

• theory, kind of reliable, by making it harder for exploits to work
• practice, varying effectiveness, typically decreases with time as new bypasses are developed
